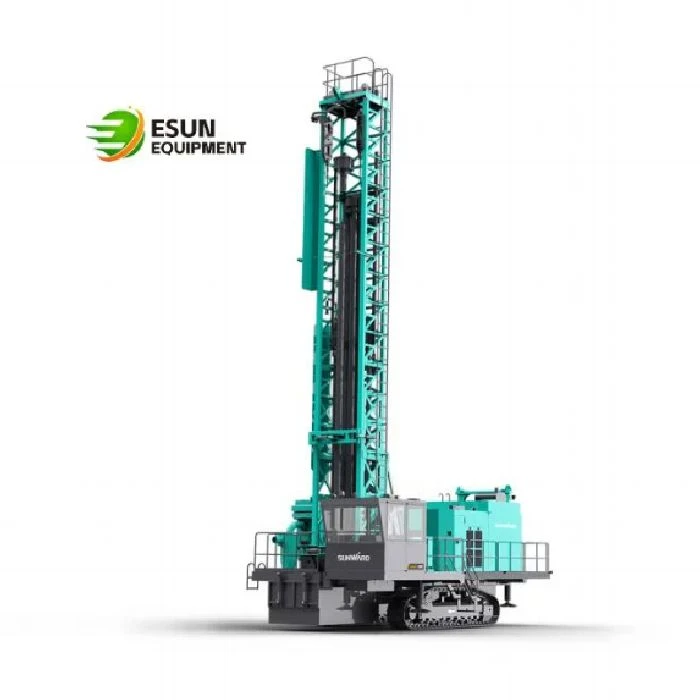

Khoom Description
|
SWB 250 |
|
|
Drilling range |
105-165 hli |
|
Drill yeeb nkab txoj kab uas hla |
79/89/102 hli |
|
Laum pas nrig ntev |
4/5m |
|
Qhov siab tshaj plaws qhov tob |
24/35m |
|
Swivel nyob rau hauv lub tsheb |
360 degree |
|
Rotary hwj chim taub hau |
|
|
Swing ceev |
200 rpm |
|
Kev sib hloov torque |
4000N.m |
|
Taug kev muaj peev xwm |
|
|
Taug kev ceev |
34.5 / 5.6 km / teev |
|
Loj tshaj plaws traction |
160kN ib |
|
Gradeability |
25 degree |
|
Av clearance |
480 hli |
|
Hauv av siab |
0.5bar |
|
Ua ntej |
|
|
Txhawb nqa tag nrho qhov ntev ntawm lub nqaj |
8200 hli |
|
Qhov siab tshaj plaws |
50kn ua |
|
Cua compressor |
|
|
Ua hauj lwm siab |
2 MPa |
|
Kev khiav tawm |
18.6 m³ / feeb |
|
zog |
194 kW/1800 rpm |
|
cav |
|
|
qauv |
QSB7-C187 |
|
Lub zog / ceev |
140 kW/2050 rpm |
|
Roj tank peev xwm |
750 |
|
Qhov ntev |
|
|
hnyav |
24t |
|
Kev ua haujlwm (ntev × dav × qhov siab) |
12.3×3.4×8.8 m |
|
Kev thauj mus los (ntev × dav × qhov siab) |
14.8×3.4×3.5 m |
Nta:
Siab axial siab, siab torque, kev kub ceev thiab loj aperture muab kev ua haujlwm zoo heev rau koj cov haujlwm mining.
Dual fais fab system ntawm lub cev muaj zog thiab diesel cav, xaiv tau siab thiab tsis tshua muaj siab ob npaug los yog qis cua compressor cua compressor, kev ua haujlwm siab, txuag hluav taws xob thiab kev tiv thaiv ib puag ncig.
Txais yuav lub zog tas mus li hloov pauv tau ntawm electro-hydraulic proportional control system kom hloov kho cov kev khiav hauj lwm tsis raws li lub pob zeb tsim.
Nws yog txawm peem rau nrog ib tug peb-point floating leveling chassis thiab ib tug high-strength truss xyaum thav duab nrog kev ntseeg siab.
Ob hom pob zeb drilling, lub khob hliav qab thiab qhov cuam tshuam hauv qab, muaj kev ua haujlwm zoo thiab kev hloov pauv dav rau pob zeb tsim.
Hais txog ESUN
Raws li lub caij ntuj sov chaw tsim tshuaj paus tshwj xeeb hauv pob zeb drilling cov cuab yeej thiab cov cuab yeej sib txuas, peb xa tawm peb ntau yam ntawm cov pob zeb xyaum, nqes-qhov-qhov xyaum, sab saum toj rauj xyaum, teb drilling rigs, thiab dej zoo drilling rigs rau thoob ntiaj teb kev lag luam. Cov khoom no pom cov kev siv dav dav hauv kev tsim choj, kev khawb av, kev tsuas, kev tsim kho dej, thiab kev thauj mus los hauv nroog.
Tsis tas li ntawd, peb ua haujlwm raws li tus tsim muab kev daws teeb meem engineering, pab txhawb kev lag luam thoob ntiaj teb kom muaj txiaj ntsig zoo, txawj ntse, thiab ruaj khov. Ntawm Angola, peb koom tes nrog cov koom tes nrog cov tswv yim kom xa cov kev daws teeb meem uas haum rau peb cov neeg siv khoom tshwj xeeb. Peb cov neeg koom tes sib koom ua ke coj ntau xyoo ntawm kev txawj ntse hauv Roj & Roj sector, choj infrastructure, tunnel excavation, mining, thiab ntau yam kev tsim kho kev lag luam, kom ntseeg tau cov kev daws teeb meem zoo tshaj plaws.
