Khoom Description
Tricone ntsis yog cov cuab yeej tseem ceeb rau cov roj drilling, nws txoj haujlwm ua haujlwm yuav cuam tshuam ncaj qha rau qhov zoo ntawm drilling, drilling efficiency thiab drilling nqi. Roj drilling thiab geological drilling yog feem ntau siv los yog cone me ntsis. Lub khob hliav qab me ntsis muaj cov nyhuv ntawm pob zeb, crushing thiab shearing lub pob zeb tsim nyob rau hauv kev sib hloov, yog li lub khob hliav qab me ntsis yuav tau yoog mus rau mos, nruab nrab thiab tawv txheej. Tshwj xeeb tshaj yog nyob rau hauv lub dav hlau cone ntsis thiab ntev nozzle tom qab qhov tshwm sim ntawm lub khob hliav qab ntsis, lub khob hliav qab laum ntsis drilling ceev zoo heev, yog lub keeb kwm ntawm txoj kev loj hlob ntawm cone me ntsis ib tug loj kiv puag ncig. Lub khob hliav qab me ntsis tuaj yeem muab faib ua cov hniav (cov hniav) los ntawm hom hniav, hniav (ntsis) (cov hniav teeb inlaid nrog carbide hniav) cone ntsis; Raws li tus naj npawb ntawm cov hniav tuaj yeem muab faib ua ib lub khob hliav qab, ob npaug, Peb-cone thiab ntau lub khob hliav qab me ntsis. Hauv tsev thiab txawv teb chaws siv ntau tshaj plaws, feem ntau yog Tricone me ntsis.

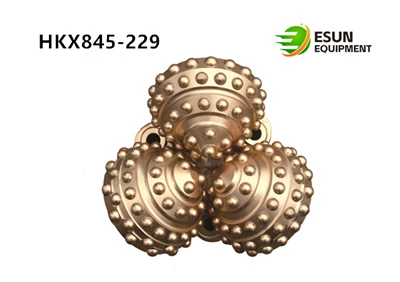

Specifications: HKX{0}}( 9" IADC545 )
APPLICATIONS:
Daim ntawv thov rau drilling mos formations nrog tsawg compressive zog thiab siab drillability, xws li shale, mos limestone, mos dolomite thiab thee txaj, thiab lwm yam (Protodikonov's Hardness Coefficient of Rock f=9).
Parameters:
IAB CODE: 745
Cov kabmob qauv: Cov menyuam-pob-thib ob Thrust-Roller-Thawj Thrust / Sealing, abrasion-resistance carbide khawm ntxig rau ntawm cov kabmob nto.
Circulation Hom: Dav Hlau
Txiav Structure:
- Sab hauv kab: Ballistic
-Gage Kab: Spherical
-Gage Bevel Protection: tiaj tus
Pin kev twb kev txuas: 6 5/8" REG(API)
Nozzel: Φ22mm (THREE pcs) Hloov tau
Metric ntsis taub: 311mm
Qhov hnyav: 98.5KG
Ntsis Legs Protection
Carbide alloy khawm ntxig rau ntawm ob txhais ceg 'ntws, nraub qaum thiab sab saum toj ntawm ob txhais ceg tsim kom muaj kev sib tsoo ntawm cov hlau tsis zoo.
Cov lus qhia ua haujlwm:
Luj ntawm ntsis: 49000-85000 Lbs
Rotary Ceev: 80-50 RPM
Cua rov qab siab: 0.2-0.4 Mpa
|
IADC CODE |
745 |
|
IB SIZE |
200mm ({1}}/8") 216mm (8 1/2") 229mm (9") |
|
Cov lus piav qhia me ntsis |
TCI sealedroller |
|
Compression Lub zog |
65-85 9000-12000 |
|
Kev piav qhia hauv av |
Ntev ntu ntawm cov mos mos heev compacted |
|
Hom kabmob |
Roller-BallR |
|
Kev ncig Hom |
Dav hlau |
|
Txiav qauv |
Sab hauv thiab qhov ntswg kab: Conical |
|
Kev Tiv Thaiv Shirttail |
Hardmetal thiab hnav resistant carbide ntawm shirttail di ncauj thiab lug |
|
WOB |
9880-39500 9880-39500 9880-39500 24500-61250 |
|
Xov |
4 1 /2" API REG 4 1 /2" API REG 4 1 /2" API REG 6 5/8" API REG 6 5/8" API REG 6 5/8" API REG |
|
Qhov hnyav |
34 kg 38 kg 50 kg 65 kg 74 kg 98 kg ib |
Hais txog ESUN
Raws li lub caij ntuj sov chaw tsim tshuaj paus tshwj xeeb hauv pob zeb drilling cov cuab yeej thiab cov cuab yeej sib txuas, peb xa tawm peb ntau yam ntawm cov pob zeb xyaum, nqes-qhov-qhov xyaum, sab saum toj rauj xyaum, teb drilling rigs, thiab dej zoo drilling rigs rau thoob ntiaj teb kev lag luam. Cov khoom no pom cov kev siv dav dav hauv kev tsim choj, kev khawb av, kev tsuas, kev tsim kho dej, thiab kev thauj mus los hauv nroog.
Tsis tas li ntawd, peb ua haujlwm raws li tus tsim muab kev daws teeb meem engineering, pab txhawb kev lag luam thoob ntiaj teb kom muaj txiaj ntsig zoo, txawj ntse, thiab ruaj khov. Ntawm Angola, peb koom tes nrog cov koom tes nrog cov tswv yim kom xa cov kev daws teeb meem hloov tau raws li peb cov neeg siv khoom tshwj xeeb. Peb cov neeg koom tes nrog cov tswv yim coj ntau xyoo dhau los ntawm kev txawj ntse hauv Kev Lag Luam Roj & Roj, choj kev tsim kho vaj tse, kev khawb qhov hauv av, tsuas, thiab ntau yam kev lag luam tsim kho, kom ntseeg tau cov kev daws teeb meem zoo tshaj plaws.
